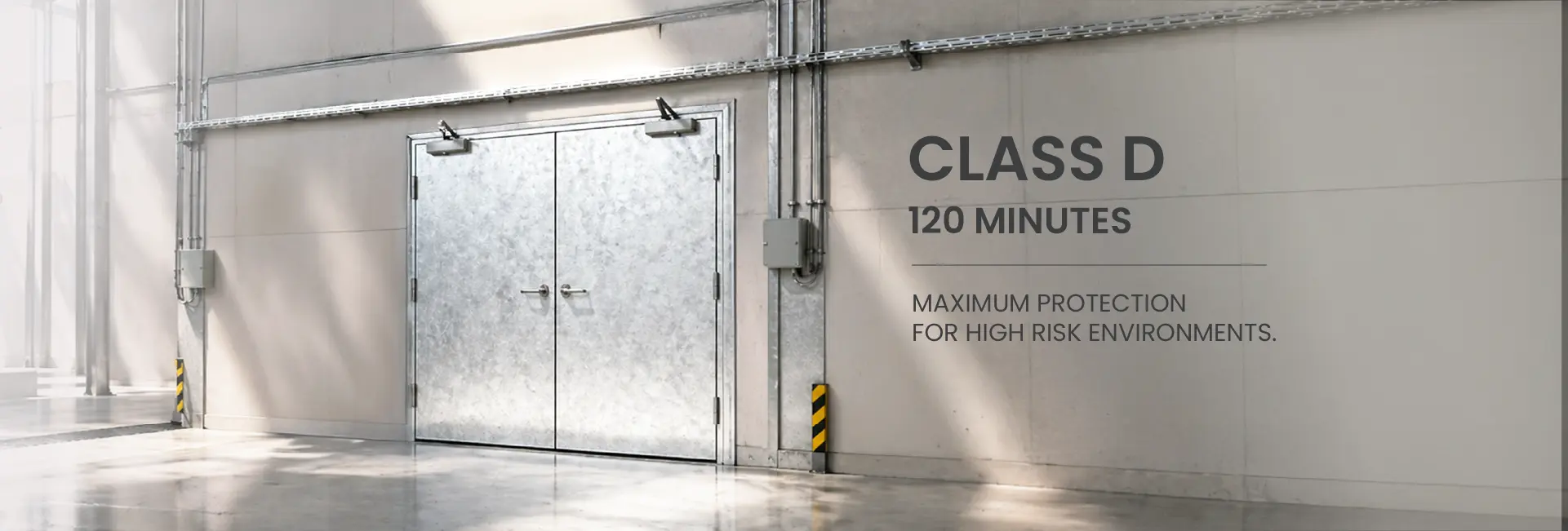

Class D 120 Minute Fire Door

Class D Fire Door

Specifications:

• Fire Rating: Stability, integrity, and insulation for up to 2 hours
• Impact Resistance: Certified to withstand a 27kg impact without creating an opening wider than 25mm between the door and the frame, ensuring durability in extreme conditions.
• Application: Designed for high-risk external environments, such as areas exposed to potential explosions or flying debris.

Construction:

• Core Material: High-density fire-resistant core engineered for maximum thermal insulation and impact resistance.
• Door Skins: Steel, hardboard, or composite finishes, suitable for heavy-duty use and customization.
• Edges: Fully concealed edges to enhance durability and aesthetics.

Steel Door Frame:

• Material: Heavy-duty 1.6mm mild steel
• Rebates: Double rebated (25mm x 50mm) for secure sealing
• Finish: Red oxide primer for corrosion and fire resistance
• Wall Compatibility: Suitable for 230mm walls
• Base Options: 22mm screed or no screed finish
• Fixing: Conventional drywall or masonry fixing options

Dimensions:

• Available in standard and custom sizes to suit project requirements

Additional Features:

• Compatible with smoke seals, intumescent strips, and reinforced hardware for enhanced performance
• Pre-hung with heavy-duty stainless steel hinges for reliable operation
• Supplied unpainted to allow finish customization
• Optional features: vision panels, louver sections, or blast-resistant enhancements for specific applications

Handing Guide:

• All Class D fire doors open outward. To determine handing, stand on the hinged side:
  • Hinged on the left side: Order left-hand door.
